Fuente de alimentacion gigabyte gp - p750gm 750w atx 80 plus gold

Type
intel form factor atx 12v v2.31
pfc
active pfc (>0.9 typical)
input voltage
100 - 240 vac (full range)
input current
12 - 6 a
input frequency
60 - 50 hz
output capacity
750w
dimensión
150 x 140 x 86 mm
fan type
120mm hydraulic bearing ( hyb ) fan
80 plus
gold
efficiency
90% at typical load
mtbf
>100 -000 hours
protectión
ovp - opp - scp - uvp - ocp - otp
power good signal
100 - 500ms
hold up time
>16ms
cable type
flat - all black

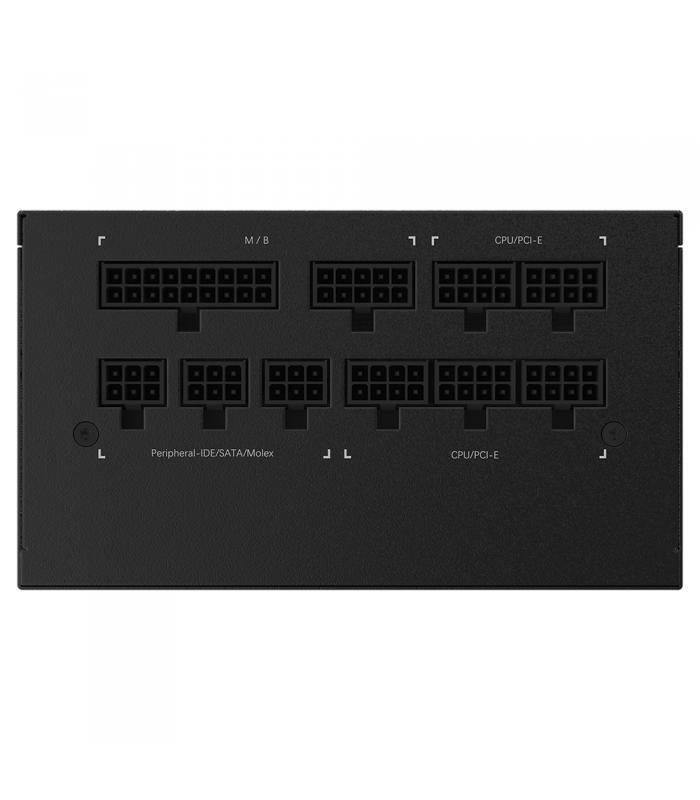

connectors
atx - mb 20+4 pin x 1 : 610mm*1
cpu - eps 4+4 pin x 2 : 600mm*2
pci - e 6+2 pin x 4 : 600mm+150mm*2
sata x 8 : 600mm+150mm+150mm+150mm*2 :
4 pin peripheral x 3 + 4 - pin floppy x 1 :
500mm+120mm+120mm+120mm *1
